Solid State Thermoelectric Air Conditioner

ThermoTEC™ 145A Series - 1500 BTU

Rugged & Dependable Electronic Enclosure Cooling for Harsh Environments
Specifications
  • 1500-2200 BTU/HR Cooling
  • Heating Capability Available
  • NEMA 4X (Indoor/Outdoor Applications)
  • Vertical or Horizontal (Top) Mounting
  • 100-264 VAC (Universal)
  • 20-1/4″ H x 12” or 13″ W Mounting Flange
  • Made in the USA
  • cULus Listed

C UL US Listed SA45512
Need information about the Legacy 145 products? Check our Resources page. Need more help? Contact Us.

See All Models
ThermoTEC™ 145A Series – 1500 BTU

EIC’s ThermoTEC™ Series 1500 BTU thermoelectric air conditioner models are designed to cool your electronic and electrical controls, instruments, computer terminals, printers, telecommunications equipment, surveillance devices, cameras, laser and optical equipment and many other electronics in a variety of military defense applications. Our electronic coolers are designed for use with a wide range of enclosures and transit cases. Models are available for both indoor and outdoor use in AC and DC power configurations. The NEW 145A Series features Universal Power (100-264 VAC). Coolers feature corrosion-resistant stainless steel construction. All are available with a variety of options.

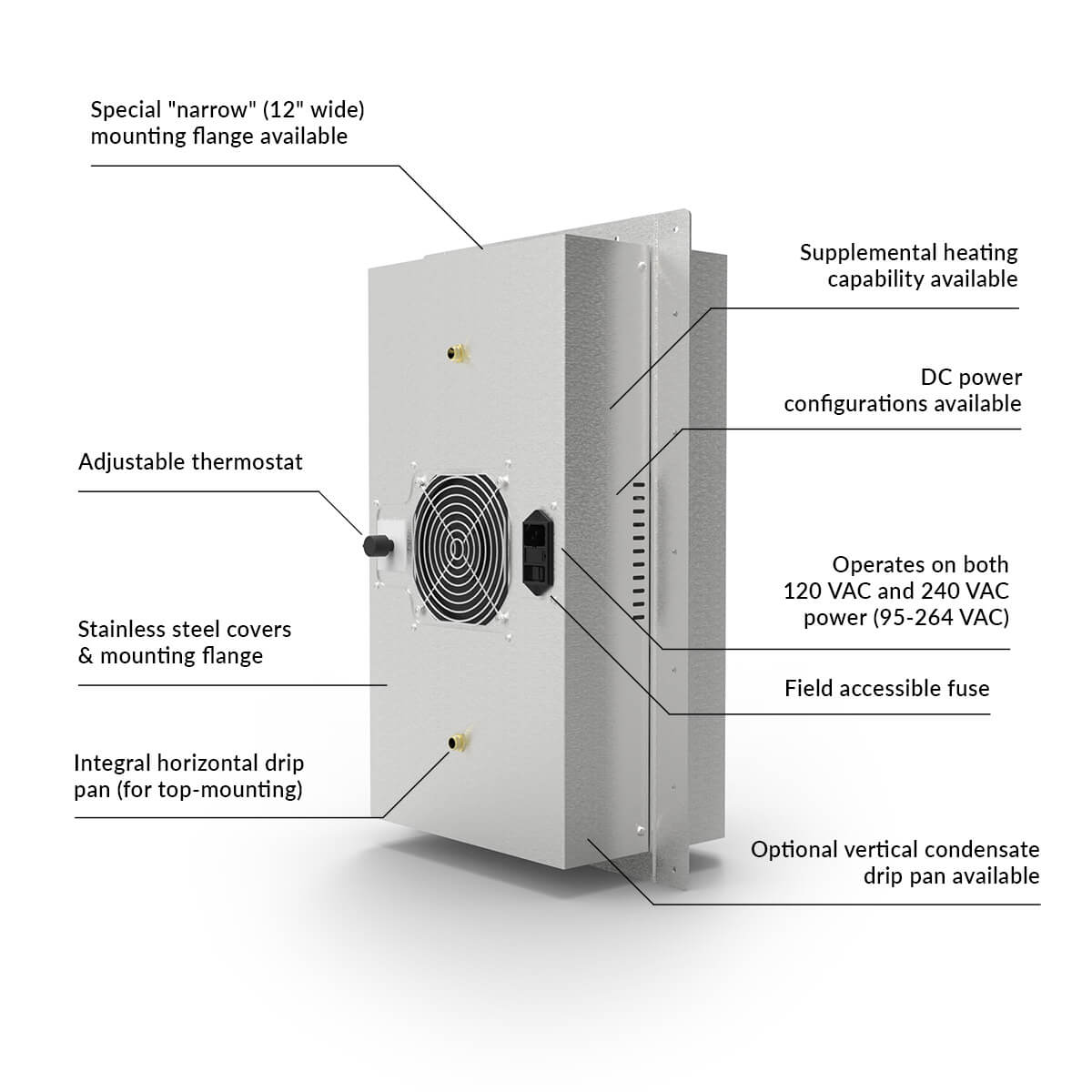

Features
  • Extremely reliable solid state construction with long life span
  • Maintenance free design with no moving components (other than fans)
  • No compressor, refrigerant or filters
  • Compact size, lightweight, convenient to install and operate
  • NEMA 4X construction (Type 304 stainless steel) for indoor or outdoor use
  • Standard models to 140° F (High ambient models available)
  • Through-mount, flush-mount or recessed-mount installation
  • Suitable for vertical or horizontal (top) mounting
  • AC or DC power configurations, with built-in adjustable thermostat
  • Mounting gasket and stainless steel fasteners included
  • Complete 12 month warranty
Options
  • Supplemental heating capability
  • Condensate drip pan with fittings and drain tubing
  • Extension frame for flush mounting on outside of cabinet
  • Rain shroud – vertical or horizontal mount
  • Digital temperature controller (remote mount)
  • Recessed frame for mounting entirely inside cabinet
  • Powder coated aluminum construction

Showing all 8 results

Models & Specifications (Click on Part # to View Detailed Specs & Drawings)
Part Number
Heating / Cooling
Mounting

Don’t see what you need?

Let’s problem solve together.

Tell Us Your Challenge

  • One business day turn around on all quotes for standard products
