ThermoTEC™ 120 Series - 200 BTU

Solid State Thermoelectric Air Conditioner

SPECIFICATIONS

  • 200 BTU/HR Cooling
  • Heating Capability Available
  • NEMA 4X (Indoor/Outdoor Applications
  • Vertical Mounting Only
  • 120/220 VAC or 24-28 VDC Power
  • 8-1/4″ H x 6″ W Mounting Flange
  • Made in the USA

Showing all 4 results

Models & Specifications (Click on Part # to View Detailed Specs & Drawings)
Part Number
Heating / Cooling
Mounting

Rugged & Dependable Electronic Enclosure Cooling for Harsh Environments

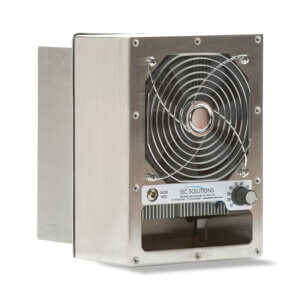

EIC’s ThermoTEC™ Series 200 BTU thermoelectric air conditioners are designed to cool your electronic and electrical controls, instruments, computer terminals, printers, telecommunications equipment, surveillance devices, cameras, laser and optical equipment and many other electronics in variety of environments. Our electronic cabinet cooling systems are designed for use with a wide range of enclosures and transit cases. Models are available for both indoor and outdoor use in AC and DC power configurations. Coolers feature corrosion-resistant stainless steel construction. All are available with a variety of options.

FEATURES

  • Extremely reliable solid state construction with long life span
  • Maintenance free design with no moving components (other than fans)
  • No compressor, refrigerant or filters
  • Compact size, lightweight, convenient to install and operate
  • NEMA 4X construction (Type 304 stainless steel) for indoor or outdoor use
  • Standard models to 140° F (DC version) and 104° F (AC version) (High ambient models available)
  • Through-mount, flush-mount or recessed-mount installation
  • Recommended for vertical mounting only
  • AC or DC power configurations, with built-in adjustable thermostat
  • Built-in condensate drip pan with fittings and drain tubing
  • Mounting gasket and stainless steel fasteners included
  • Complete 12 month warranty

OPTIONS

  • Supplemental heating capability
  • Rain shroud – vertical mount
  • Digital temperature controller (remote mount)
  • Recessed frame for mounting entirely inside cabinet
  • Powder coated aluminum construction
  • CE certified units
