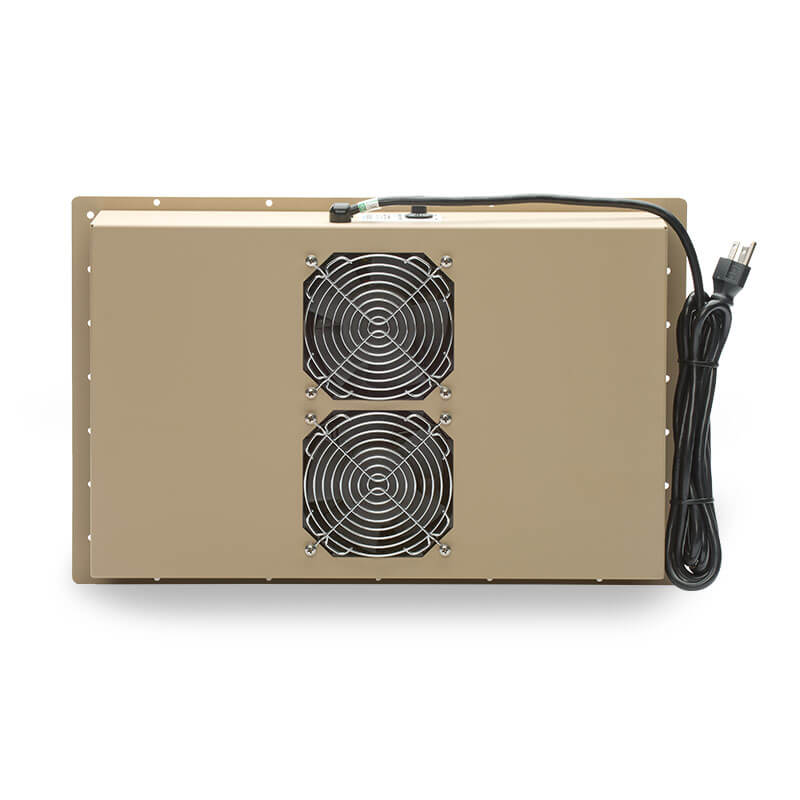

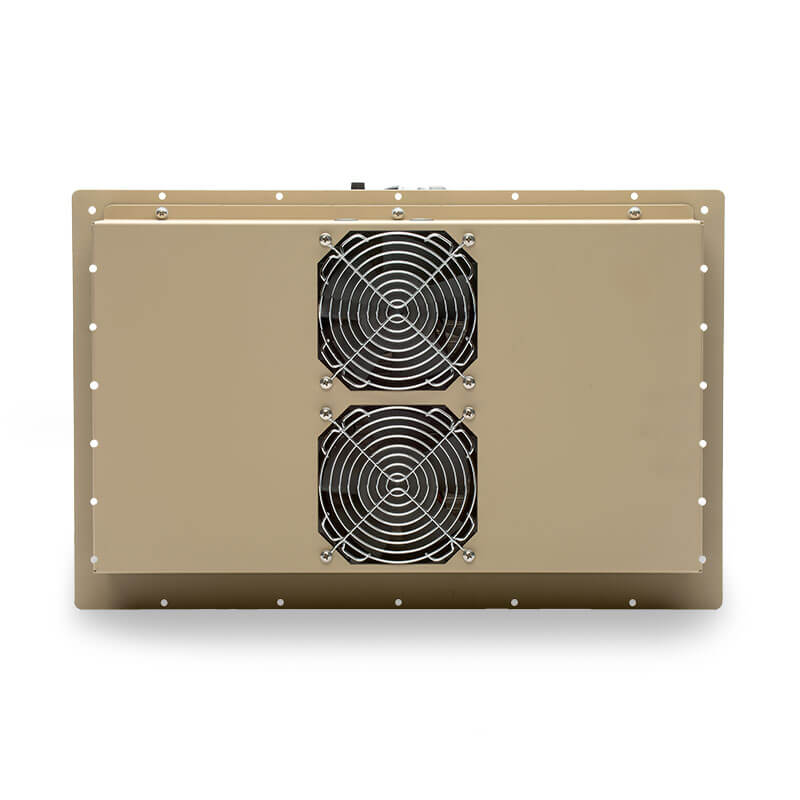

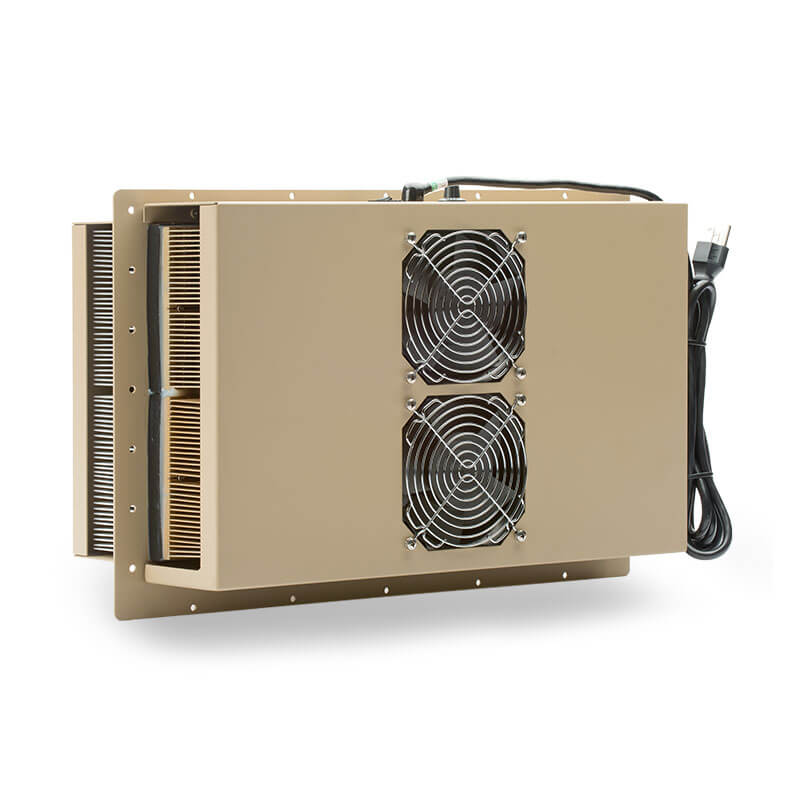

ThermoTEC™ 145 Series - 1500 BTU Military Grade

Solid State Thermoelectric Air Conditioner

SPECIFICATIONS

  • 1500 BTU/HR Cooling
  • Supplemental Heating Capability Available
  • NEMA 4X (Indoor/Outdoor Applications)
  • 24/28VDC & 120/240VAC Auto Ranging
  • 12 5/8″ H x 19.5″ W Mounting Flange
  • Integral Condensate Management System
  • Made in the USA

Heating/Cooling

Showing all 2 results

Models & Specifications (Click on Part # to View Detailed Specs & Drawings)
Part Number
Heating / Cooling

Rugged & Dependable Electronic Enclosure Cooling for Military & Defense

EIC’s ThermoTEC™ Series 1500 BTU military grade thermoelectric air conditioner models are designed to cool your electronic and electrical controls, instruments, telecommunications equipment, surveillance devices, cameras, laser and optical equipment and many other electronics in variety of military and defense applications. Our electronic coolers are designed for use with a wide range of enclosures and transit cases. Models are available for both indoor and outdoor use in AC and DC power configurations. Coolers feature corrosion-resistant aluminum construction.

FEATURES

  • Mil-Spec fans
  • Built to withstand shock and vibration
  • Extremely reliable solid state construction with long life span
  • Maintenance free design with no moving components (other than fans)
  • No compressor, refrigerant or filters
  • Compact size, lightweight, convenient to install and operate
  • NEMA 4X construction (Powder coated aluminum) for indoor or outdoor use
  • Standard models to 160°F operating temperature
  • Suitable for vertical or horizontal (top) mounting
  • Adjustable thermostat
  • Built-in condensate collection area with drain holes, fittings and flexible PVC drain tubing.
  • Mounting gasket and stainless steel fasteners included
  • Complete 12 month warranty

OPTIONS

  • Supplemental heating capability
  • Digital temperature controller (remote mount)
  • RF/EMI shielded (test data available)
  • Mil-Spec paints, coatings and treatments

INTEGRATION

  • Designed for easy integration into transit cases
  • Full line of both rack-mount and clam shell style cases available
  • Rack-mount cases offered in roto-molded plastic, TSC (composite), fiberglass, and aluminum construction
  • All cases designed to military standards
  • Optional items such as cable exits, insulation, pressure relief, shelves, etc.
  • Both Standard and fully customized case configurations available
