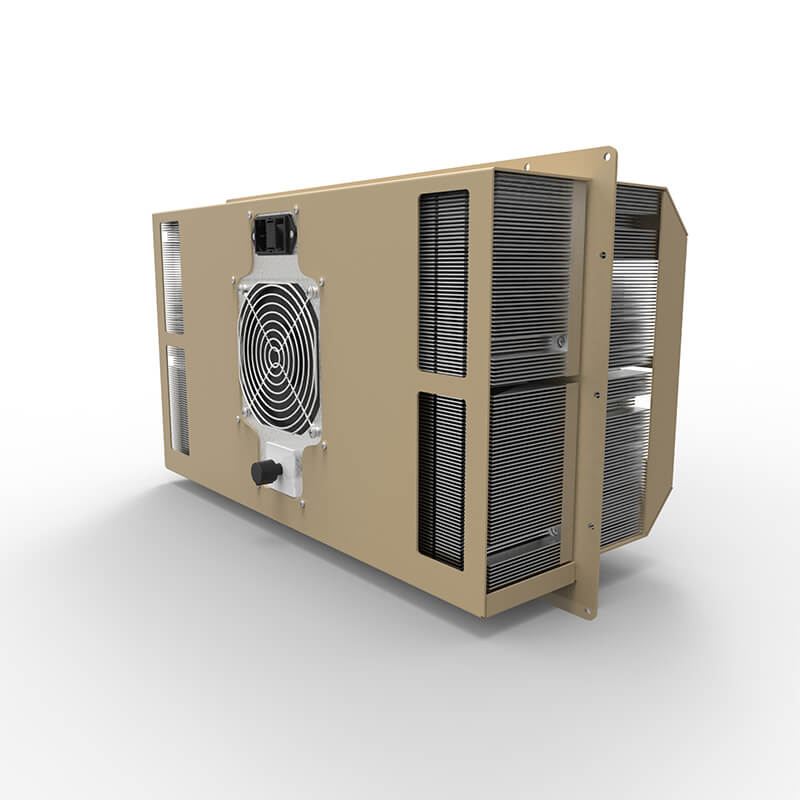

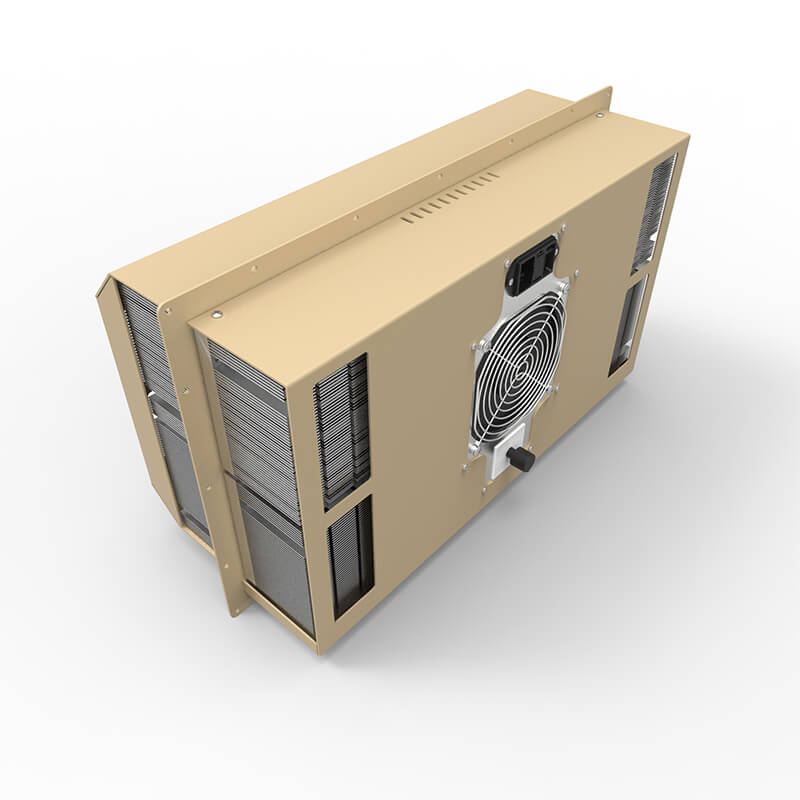

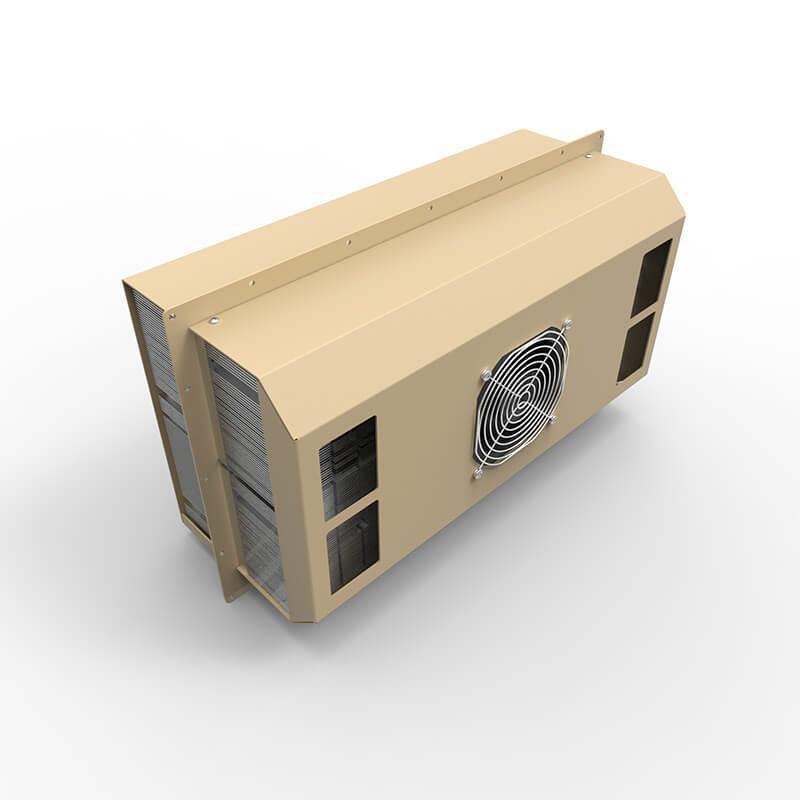

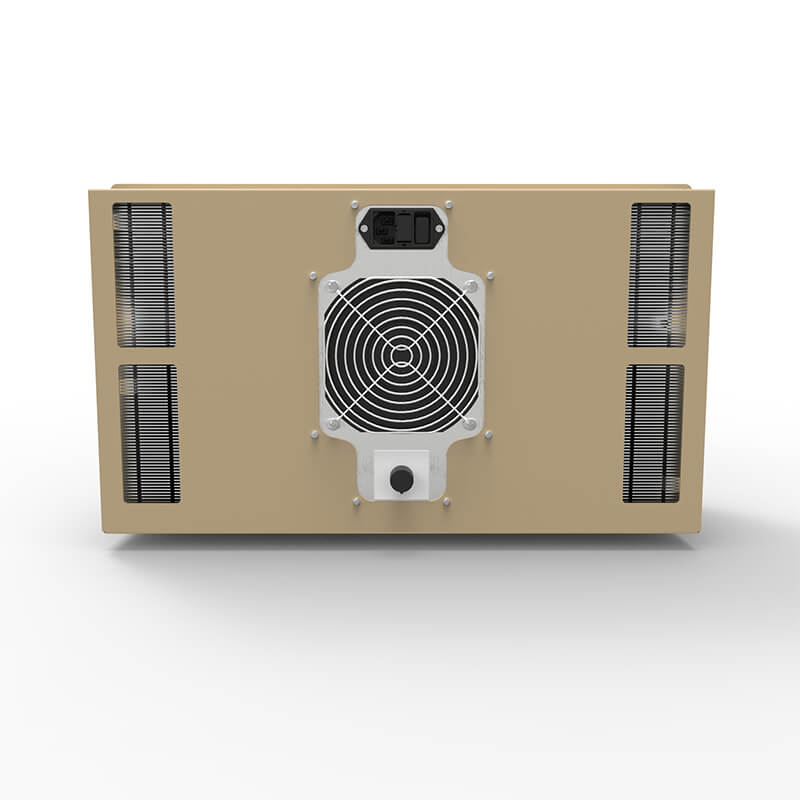

ThermoTEC™ 145 Series - 1500 BTU M34

Solid State Thermoelectric Air Conditioner

SPECIFICATIONS

  • 1500 BTU/HR Cooling
  • Heating Capability Available
  • NEMA 4X (Indoor/Outdoor Applications)
  • Vertical Mounting
  • Integral Condensate Drip Pan
  • 120 VAC Power (240 VAC & DC Voltages Available)
  • 12.625″ H x 19.5″ W Mounting Flange
  • Patented Design
  • Made in the USA

etl

One business day turn around on all quotes for standard products.

Heating/Cooling

Mounting

Showing all 2 results

Models & Specifications (Click on Part # to View Detailed Specs & Drawings)
Part Number
Heating / Cooling
Mounting

Rugged & Dependable Electronic Enclosure Cooling for Harsh Environments

EIC’s ThermoTEC™ Series 1500 BTU thermoelectric air conditioner models are designed to cool your electronic and electrical controls, instruments, computer terminals, printers, telecommunications equipment, surveillance devices, cameras, laser and optical equipment and many other electronics in a variety of military defense applications. Our electronic coolers are designed for use with a wide range of enclosures and transit cases. Models are available for both indoor and outdoor use in AC and DC power configurations. Coolers feature corrosion-resistant painted aluminum construction. All are available with a variety of options. The M34 1500 BTU is designed specifically for applications with weight restrictions and tighter mounting areas.

FEATURES

  • Extremely reliable solid state construction with long life span
  • Maintenance free design with no moving components (other than fans)
  • No compressor, refrigerant or filters
  • Compact size, lightweight, convenient to install and operate
  • NEMA 4X construction (painted aluminum) for indoor or outdoor use
  • Available finishes include:  White, Gray, Desert Tan, Olive Drab, Black, or matched to customer’s spec
  • Standard models to 140° F (High ambient models available)
  • Through-mount installation
  • Suitable for vertical mounting
  • AC or DC power configurations, with built-in adjustable thermostat
  • Mounting gasket and stainless steel fasteners included
  • Complete 12 month warranty

OPTIONS

  • Supplemental heating capability
  • Digital temperature controller (remote mount)
