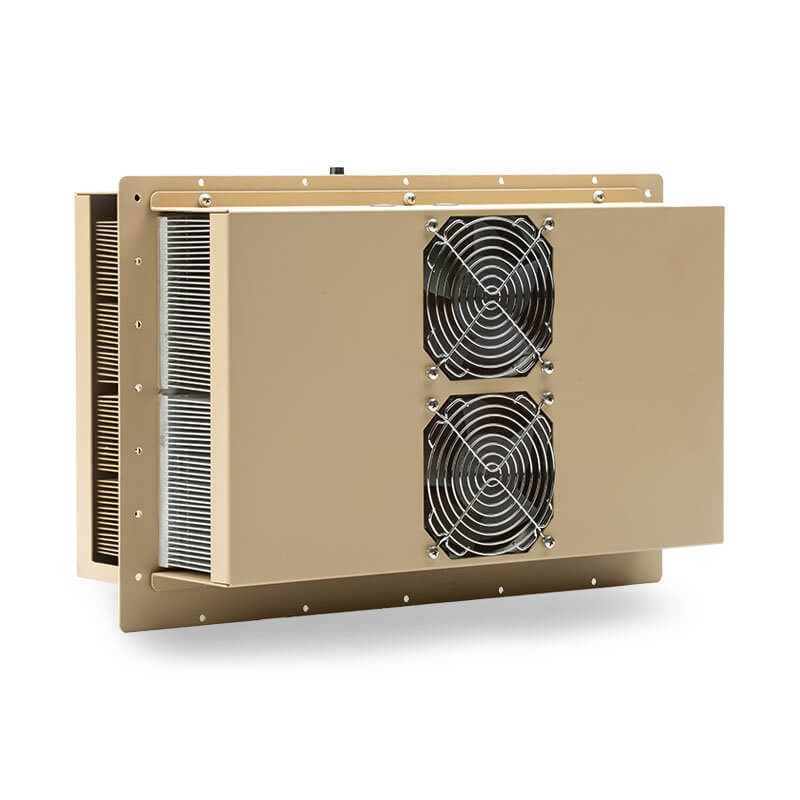

1500 BTU Military Grade Thermoelectric Air Conditioner - Rear View, Left Side

AAC-145-4XT-E-HC-MG

ThermoTEC™ Series - 1500 BTU Military Grade - Solid State Thermoelectric Air Conditioner - Heating/Cooling - NEMA 4X

Compact, lightweight, 1500 BTU/HR military grade thermoelectric cooling system for electronic and computer enclosures in harsh industrial settings. Unit features a simple, efficient solid state design for reliable performance.

Specifications
Drawings & Downloads

Specifications

Cooling Capacity	1500 BTU/HR
Heating / Cooling	Heating/Cooling
Mounting	Through-mount
Mounting Options	Note: Standard mounting is through-mount, but air conditioner can be flush-mounted with an optional extension frame.
NEMA Rating	NEMA 4X – Indoor/Outdoor
Construction	Desert tan powder coated aluminum (covers and mounting flange) – other colors available
Dimensions	17-5/8"H x 10.156"W x 8-1/2"D body, 12-5/8"H x 19-1/2"W flange
Operating Range	-35 Degrees F up to 160 degrees F
Temperature Control	Adjustable thermostat
Power	24 VDC at max. 19 AMPS, 28 VDC at max. 16 AMPS, 120 VAC at max. 6.3 AMPS, 220 VAC at max. 5.0 AMPS – auto ranging
Frequency	50/60 Hz
Features	Integral power supply, circuit breaker and 9' power cord
Includes	Mounting hardware and gasket
Weight	42 lbs.
Warranty	One year

Downloads

1500 BTU Military Thermoelectric Air Conditioner Data Sheet (PDF)
