CBIQ6000EV

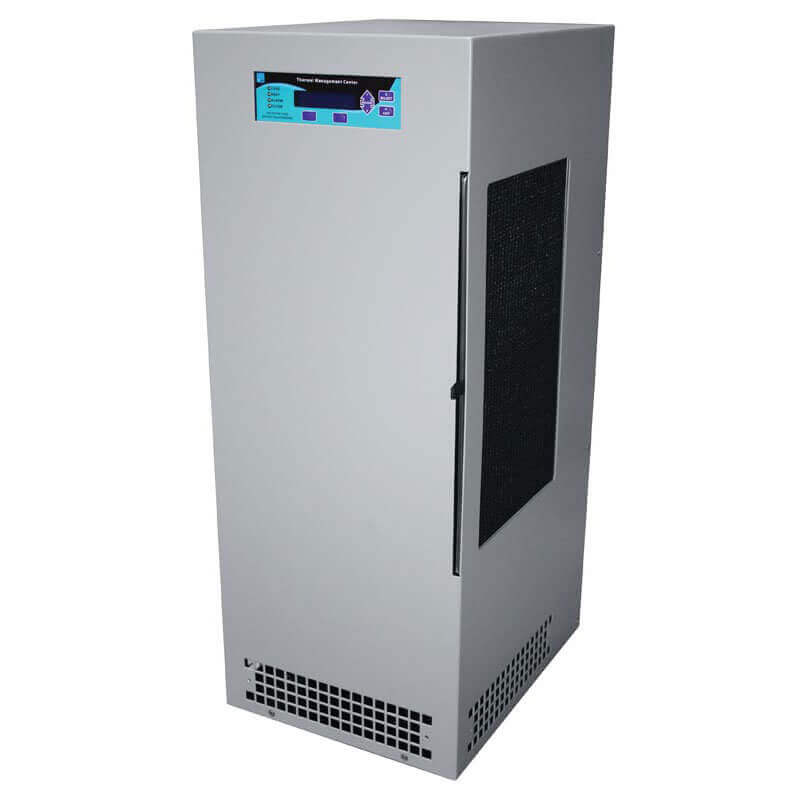

CB Series - 6,500 BTU - Compressor-Based Air Conditioner - Side Mount/Hazardous Location - 28.584H x 11.309"W x 14.15"D"

Compressor-based air conditioner designed for applications requiring a traditional air conditioner and/or higher levels of cooling output. This industrial air conditioner offers a 6,500 BTU cooling capacity and is available in a wide range of configurations for both indoor and outdoor use. Unit is designed for vertical (side) mounting with a variety of options available. Compatible with all Protector™ Series Enclosures.

*To place an order, please Request a Quote.

Specifications

Cooling Capacity	6,500 BTU/HR
Hazardous Class	Class 1, Div. 2
Mounting Orientation	Side-mount
NEMA Rating	NEMA 12, NEMA 4, NEMA 4X
Dimensions	28.584"H x 11.309"W x 14.15"D
Temperature Control	Integral digital temperature controller
Available Voltages	120 VAC, 230 VAC, 400 VAC, 480 VAC
Features	Environmentally-friendly HFC refrigerant
Certification	UL certified

CB Series - 6,500 BTU - Compressor-Based Air Conditioner - Side Mount/Hazardous Location - 28.584H x 11.309"W x 14.15"D"

Specifications

PDF
